mule-idp-connector

A Universal IDP Connector to rule them All

This connector provides a unified interface for interacting with MuleSoft Intelligent Document Processing (IDP) actions, mitigating challenges associated with connector sprawl and reconfiguration overhead when integrating IDP with Anypoint Studio.

Key Benefits:

• Defeat Connector Sprawl: Consolidates multiple IDP actions into a single connector interface.

• Simplified Configuration: Minimizes reconfiguration needs in Anypoint projects when action versions change.

• Enhanced Flexibility: Designed to support potentially undocumented functionalities.

• Scalability: Enables rapid onboarding of new document actions for enterprise scale.

Integrating IDP with Anypoint Studio

• How can reduce the number of connectors and mitigate the known issues with Integrating IDP with Anypoint Studio

  • "Each document action version generates a different connector."

  • "Then, if you modify the document action and republish it as version 1.1.0, it generates a different connector"

• Yes sure use Service IDP - Execution - Submit

• The dateweave for Postdocumentactionexecution request data is so complicated and I keep on getting 400 Http Status. Is there a simpler way?

• Yes sure use Service IDP - Execution - Submit

• Test Connection fails with "clientId cannot be blank"

• Yes sure use our connectivity test it works for both Basic and OAuth

PDF Manipulation

• I would like to classify a PDF by its text before sending and therefore save on IDP charges

• Yes sure use Utils IDP - PDF - ExtractText

• I would like to delete blank PDF pages before submitting to MuleSoft IDP to make the response more manageable and cheaper?

• Yes sure use Utils IDP - PDF - RemovePages

• I have a PDF of XXX pages but only want to submit pages 1 and 4

• Yes sure use Utils IDP - PDF - RemovePages

Value Adds

• Can I notify (Email) reviewers on failure or manual review required?

• Yes sure use Service IDP - Review Task - Delete

• Can I update a Review Task without requiring a human in the loop ie a daemon process

• Yes sure use Service IDP - Review Task - Update

• Can I list my current Document Actions and their versions for a 3rd Party or Documentation?

• Yes sure use Platform IDP - Actions - List & Platform IDP - Action Versions - List

• How do I delete Review Tasks?

• Yes sure use Service IDP - Review Task - Delete and most likely Service IDP - Review Tasks - List

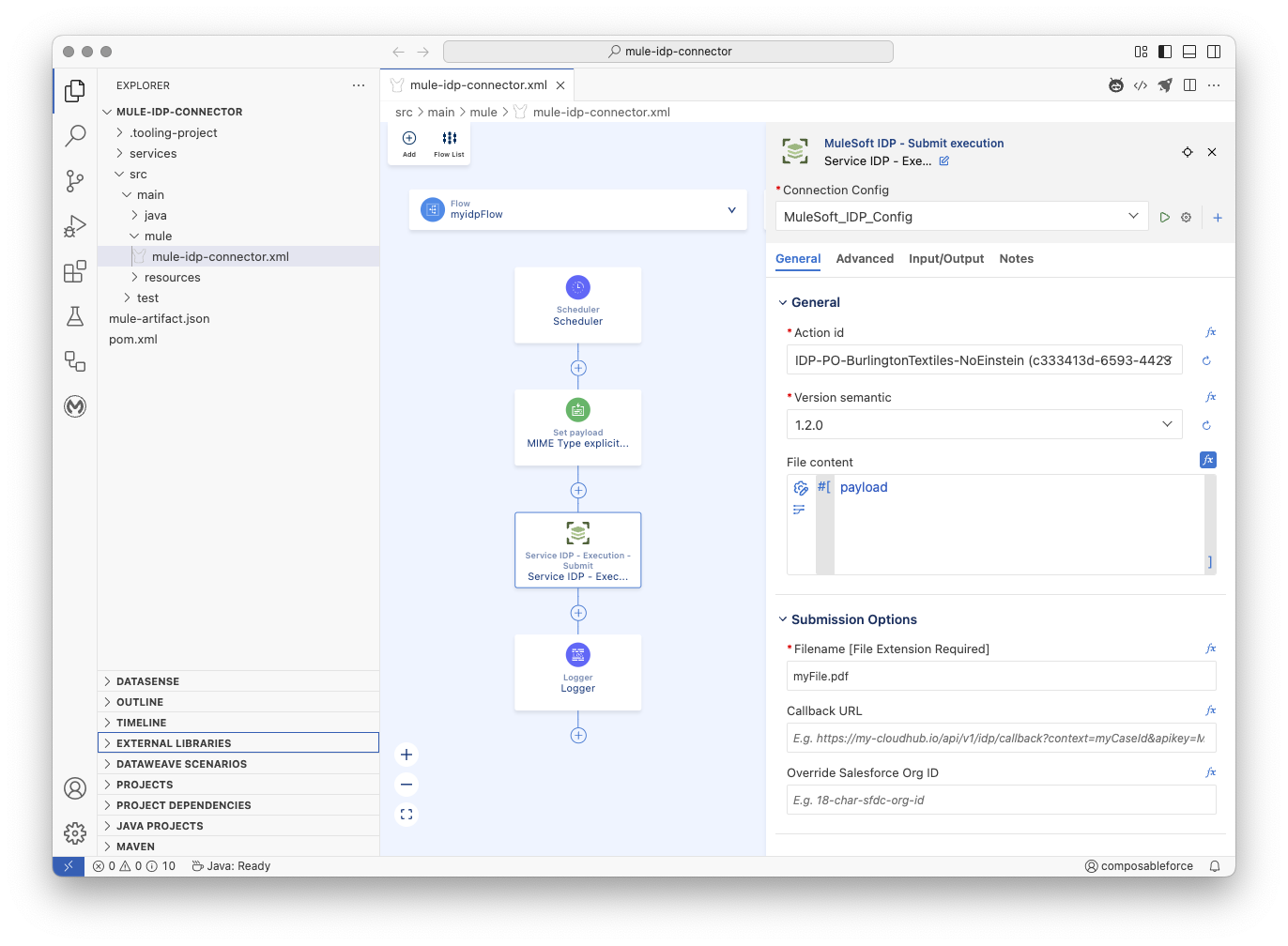

Anypoint Code Builder

Anypoint Studio

Background

Integrating IDP with Anypoint Studio / Anypoint Code Builder

Execute a published document action and retrieve the results from Anypoint Studio using that document action’s IDP Runtime Service API connector. This connector generates automatically when you publish a document action to Anypoint Exchange. Then, you can download it as a Mule connector from Exchange.

Each document action version generates a different connector. For example, when you publish a document action for the first time, it generates a connector in Exchange that executes version 1.0.0 of this document action. Then, if you modify the document action and republish it as version 1.1.0, it generates a different connector that you must download and install in Studio to execute this new document action version. Consider this behavior when building your integrations.

The mule-idp-connector was developed to address these key challenges, which are not criticisms

• Each MuleSoft IDP Document Action creates a REST Connector

• Each newly published version of a MuleSoft IDP Document Action creates another connector and breaking change to existing Anypoint Studio/Code Builder project.

• Multipart input to postDocumentActionExecution has no datasense and prone to tribal knowledge
